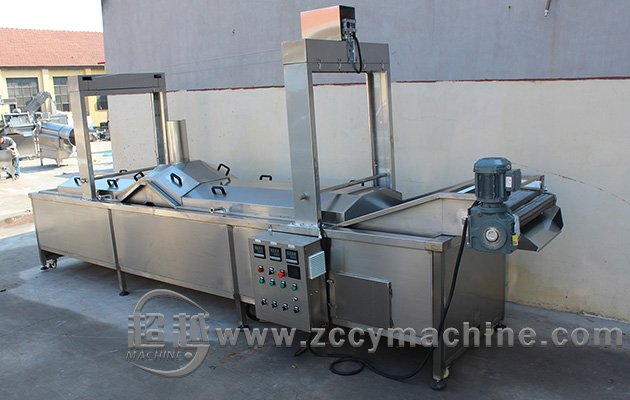

The potato chips blanching machine is made of high quality stainless steel, sold to Egypt, stainless steel chain mesh belt transmission and punching board to make up the working space, closed steam pipe and pipe, and the water temperature of the vortex type aerator is uniform. The steam can be heated by the steam pipes and pipelines of the automatic temperature control to meet the processing requirements of the blanching materials. When the material is transported online, the pure high-pressure air is generated by the air bubbles under the mesh belt of the equipment trough to form a small water wave, thus achieving the purpose of full washing and ironing of the processed materials. Transmission and blanking time can be controlled by frequency modulation of frequency converter. The structure of the equipment is simple and stable, with low noise and energy consumption.
Installation of Vegetable Blanching Machine
The machine should be installed on a horizontal surface, such as uneven ground, which can be adjusted to keep the machine level. The user provided the exhaust hood, and suggested that the exhaust pipe should pass through the ceiling vertically. The pipe must be insulated with the ceiling, and the outdoor outlet should be equipped with rainproof hats. The exhaust pipe must be completed by the user professional installer. The machine USES 380V/50Hz three-phase four-wire alternating current.
Equipment Debugging of Potato Chips Blanching Machine
(1) After the equipment is ready, connect the 50Hz three-phase four-wire alternating current to the total switch of the electric control box of the blanching machine, and the grounding wire must be connected.
(2) Adjust the speed of mesh belt according to the blanching time required by food.
(3) Set the temperature of blanching food.
(4) Start the transmission motor, and pay attention to whether the conveyor direction is correct.
